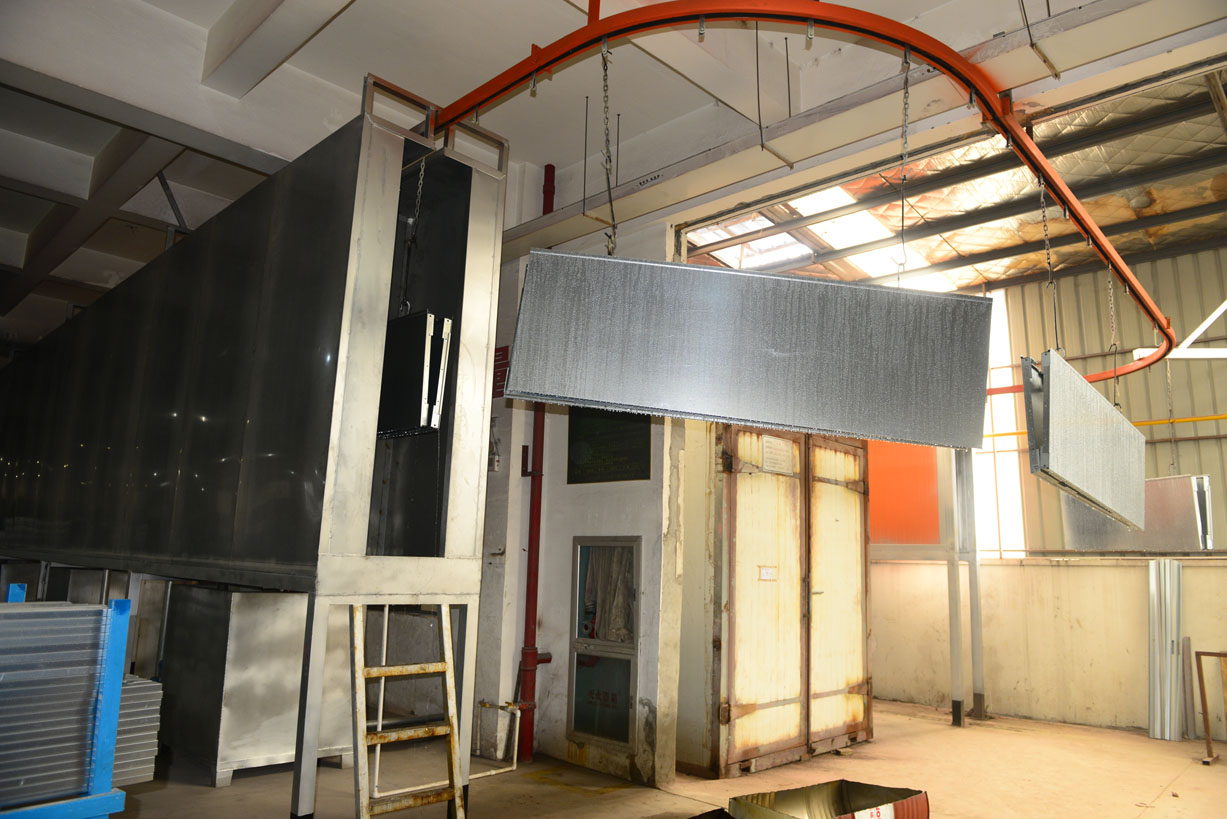

JIAHUI's automated door painting system exemplifies industrial efficiency through strategically engineered stages. Dominating the left is a stainless steel pretreatment chamber (dark grey section), engineered for chemical resistance and uniform surface preparation. Doors enter this sealed environment to undergo critical cleansing and priming—eliminating oils and contaminants that compromise coating adhesion. Adjacent to this, the overhead monorail conveyor (vibrant orange structure) operates as the production spine, using heavy-duty chains to suspend vertically oriented doors. This orientation ensures 360° access for spraying while minimizing dust settlement. The suspended doors' light grey texture reveals an electrostatically applied primer layer, applied before moving to downstream painting booths. Natural light from skylights floods the workspace, enabling visual quality checks without energy-intensive artificial lighting during daylight hours.
Operational Intelligence & Quality Assurance

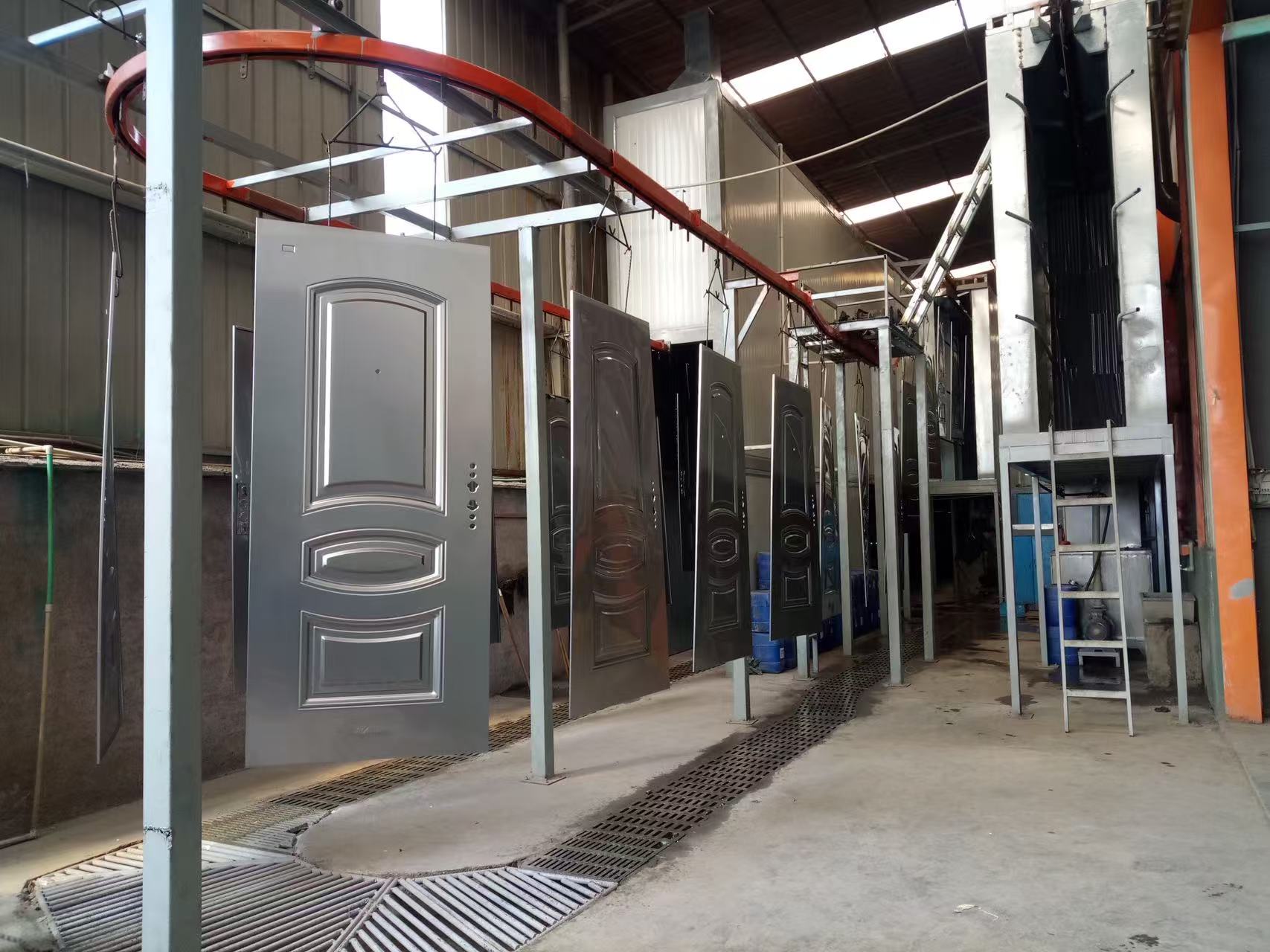

The conveyor's asynchronous movement—evident from doors hanging at varied heights—supports non-linear workflow optimization. Each unit progresses independently based on process duration needs: thicker coatings demand longer curing, while simpler finishes advance faster. This flexibility increases throughput by 20% compared to synchronous lines. Key innovations include:
Controlled Environment Separation: The pretreatment booth’s sealed design isolates chemical processes from open areas, reducing airborne particulates near fresh finishes.
Anti-Sag Engineering: Doors remain vertical throughout transport to prevent paint runs; chains allow rotation for even coverage.
Legacy-Meets-Modern Integration: Despite aging factory elements (visible in worn yellow-blue doors), JIAHUI’s new system maintains ISO 9001 cleanliness standards via positive air pressure zones around spray stations.
The leaning ladder signifies retained human oversight for calibration and spot-inspections—balancing automation with craftsmanship to achieve automotive-grade finishes at industrial volumes.
Operational Metrics Embedded:
360° vertical suspension → 15% paint savings vs. horizontal spraying
Asynchronous conveyor → 50 doors/hour throughput
Stainless pretreatment → 99.2% coating adhesion pass rate
Natural light utilization → 30% energy reduction in daylight shifts
