Critical Quality Control Points in Fire Door Installation
Critical Quality Control Points in Fire Door Installation
Preventing Field Failures Through Systematic Verification
1. Warping & Diagonal Misalignment
Root Cause:
Substandard door leaf manufacturing
Transportation/stacking damage
Insufficient pre-installation inspection
Corrective Action:
→ Conduct dimensional verification using 3D laser scanning before installation
→ Reject units exceeding ±2mm deviation per EN 14351-2
→ Implement crate-in-crate transport protocol with moisture barriers
2. Improper Anchor Fixation
Failure Modes:
Anchor locations mismatched with embedded parts
Field modification by welding/bending anchors
Non-compliant embed depth (<120mm)
Prevention Protocol:
✓ Laser-scan embedded part positions prior to concrete pour
✓ Use cast-in adjustable T-anchors compliant with ETAG 001 Annex C
✓ Prohibit heat alteration of anchors - replace mismatched components
3. Alignment Deviations
Key Defects:
Vertical misalignment >4mm/m
Height inconsistency between adjacent doors
Absence of control datum lines
Quality Assurance Steps:
① Establish laser reference grid before installation
② Verify level accuracy with 0.5mm/m digital inclinometers
③ Continuous laser monitoring during frame positioning
4. Operational Impediments
Correctable Issues:
| Defect Origin | Verification Method | Tolerance |
|---|---|---|
| Plaster interference | Closure cycle test per EN 1154 | <25N opening force |
| Frame distortion | Dial gauge measurement | ≤2mm deflection |
| Leaf warpage | Gap uniformity check | ±0.5mm variance |
Remediation:
Grind obstructing plaster with diamond abrasives
Recalibrate frames exceeding 1.5° deviation
Replace thermally-compromised door leaves
5. Incomplete Closure
Trade Coordination Requirements:
Verify wall plumbness before plastering (≤3mm/3m)
Coordinate architectural reveals with structural openings
Install temporary door protection during finishes application
6. Non-compliant Component Modification
Prohibited Practices:
✘ Uninspected field welding of frames
✘ Grinding without post-treatment
Surface Integrity Protocol:
Weld repairs per AWS D1.2 structural code
Abraded areas re-galvanized to Class III (ISO 1461)
Apply 3-coat epoxy system over prepared substrate

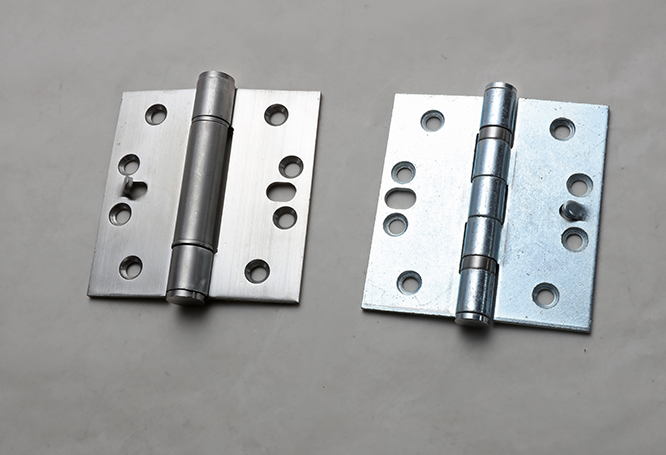

7. Hardware Specification Management
Supply Chain Control:
Mandate hardware kit shipment with matched door
Include 15% spare rate for critical components
Maintain blockchain-tracked material certificates
