1. Why Emergency Exit Projects Need Panic Bar Fire Rated Doors

Emergency exit doors are different from ordinary room doors. They must support fast evacuation, reliable closing, frequent use and clear access during emergency situations. In many commercial and public building projects, panic bars are selected because they allow users to push the door open quickly from the exit side.

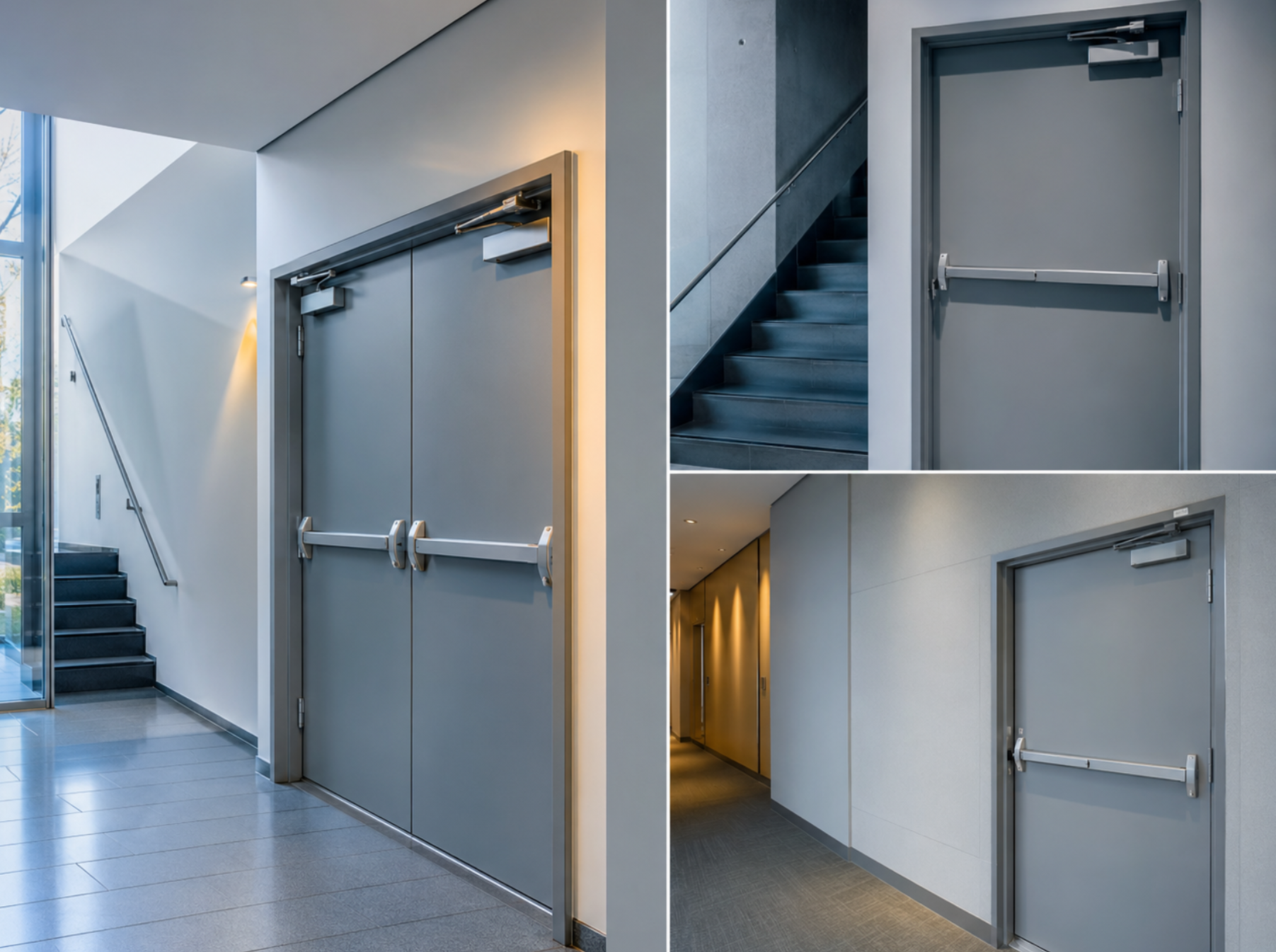

A fire rated steel door with panic bar is usually used in stairwells, emergency exits, public corridors, basement exits, factory escape routes, warehouse exits, school exits, hospital evacuation routes and shopping mall service areas. The door should be selected according to the project drawings, required fire rating, opening width, traffic flow and local building requirements.

For project buyers, the panic bar should not be treated as a simple accessory. It must match the door leaf, steel frame, lock preparation, door closer, opening direction and installation environment. If these details are not confirmed before production, the final door set may require modification on site.

2. Confirm Fire Rating, Door Size, Frame And Opening Direction

Fire rating should be confirmed according to the project specification and the door location. Emergency exit projects may require 60 minute, 90 minute, 120 minute or project-specific fire rated steel doors. Different areas of the same building may require different fire ratings, so buyers should not use one standard specification for every opening without checking the door schedule.

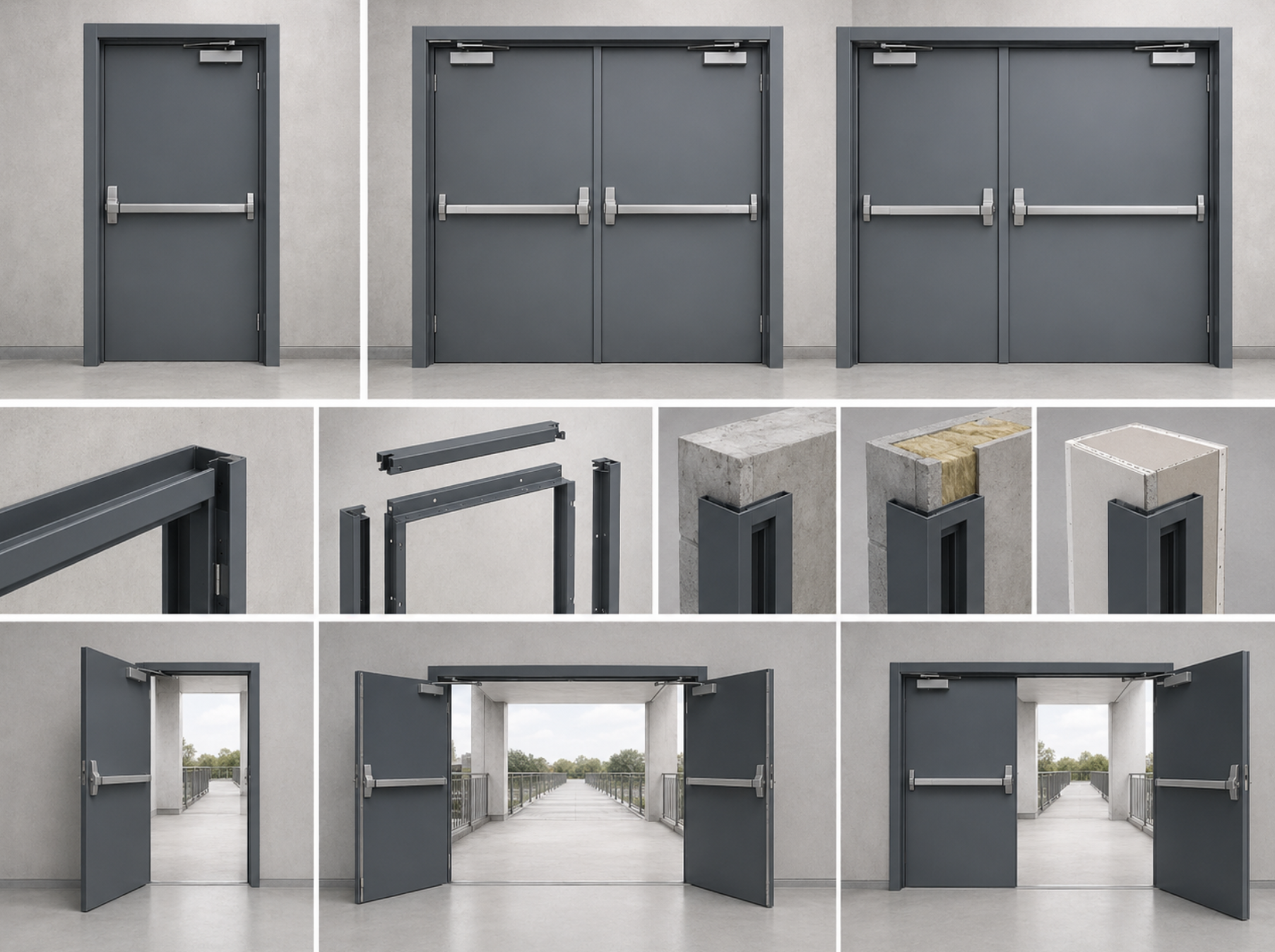

Door size is also important. Emergency exits may need enough clear passage width for people to evacuate smoothly. Buyers should provide opening width, opening height, wall thickness and installation tolerance before requesting a quotation. For larger openings, double leaf fire rated steel doors with panic bars may be required.

Opening direction must be confirmed before production because it affects hinge position, panic bar layout, lock preparation and closer installation. Left hand, right hand, inward opening and outward opening should be clearly listed in the door schedule.

Fire Rated Steel Door With Panic Bar Selection Checklist

3. Match Panic Bar, Door Closer And Hardware Package Correctly

The panic bar should be selected according to door type, width, opening direction and emergency exit function. For single leaf doors, one panic bar is usually installed on the exit side. For double leaf emergency exit doors, buyers should confirm whether both leaves need panic bars and whether a coordinator, flush bolt or special locking arrangement is required.

Door closers are also important because fire rated doors should return to the closed position after use. The closer should match the door leaf weight, door width and traffic frequency. If the closer is too weak, the door may not close fully. If the closer is too strong, daily use may become uncomfortable.

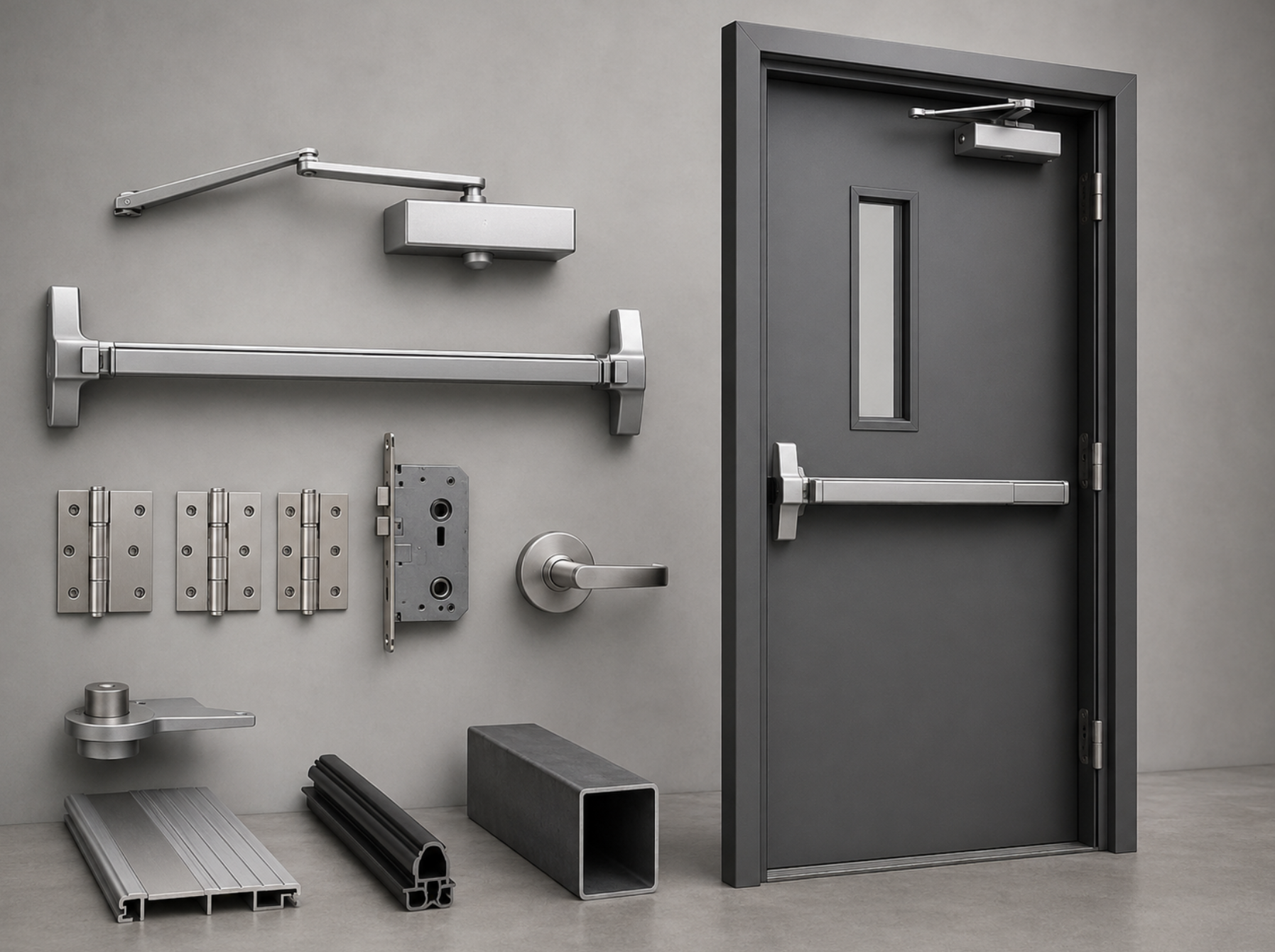

Other hardware may include heavy-duty hinges, lock body, outside trim, lever handle, cylinder, coordinator, threshold, intumescent seal and fixing accessories. Buyers should request a complete hardware list before placing the order so that the supplier can prepare the correct drilling, reinforcement and packing method.

4. Check Sample Approval, Quality Inspection And Export Packaging

For emergency exit projects, sample approval can help buyers check the complete door set before bulk production. The sample should confirm door leaf structure, frame profile, panic bar position, closer operation, hinge alignment, lock preparation, surface finish and opening direction.

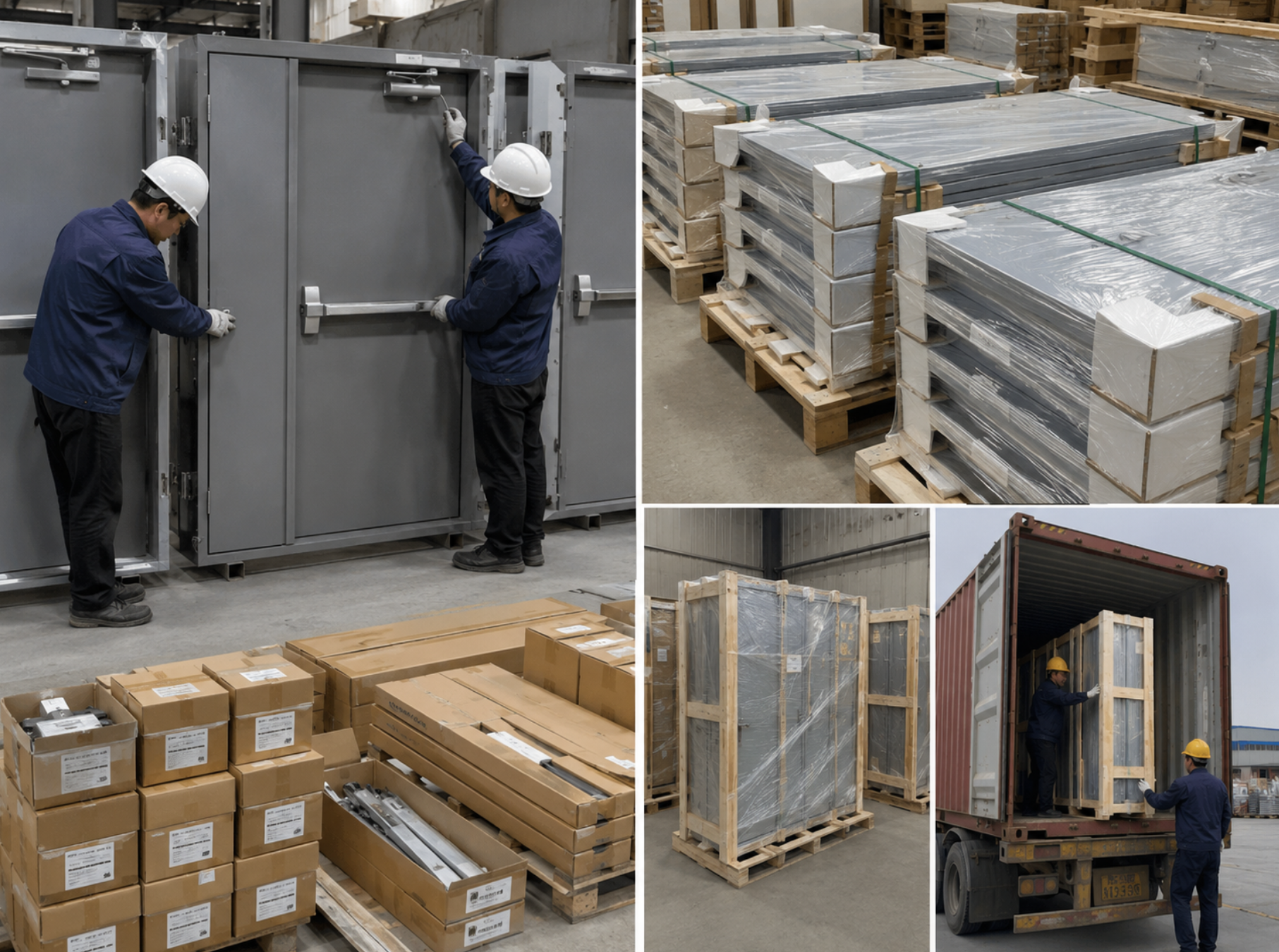

During production, quality inspection should cover dimensions, frame accuracy, surface coating, panic bar installation position, closer mounting area, hinge reinforcement, door labels and hardware packing. For overseas buyers, inspection photos and packing photos can help confirm details before shipment.

Export packaging should protect door leaves, frames, surface coating, panic bars, closers and accessory boxes during loading, sea freight, unloading and site handling. Protective film, foam, corner guards, pallets, wooden crates and labeled hardware boxes can reduce damage and make installation management easier after arrival.

Conclusion: Panic Bar Fire Rated Doors Should Be Ordered As Complete Door Sets

Fire rated steel doors with panic bars are important for emergency exit projects. Buyers should not only compare the door leaf price. A complete order should include door leaf, steel frame, panic bar, door closer, hinges, lock, seals, opening direction, surface finish, labels, packaging and delivery support.

If you need fire rated steel doors with panic bars for commercial buildings, hotels, apartments, hospitals, schools, factories, warehouses or public facility emergency exit projects, send us your door schedule, drawings, fire rating, size list, frame type, hardware requirement and quantity. JIAHUI can help review the details and provide a suitable project quotation.
