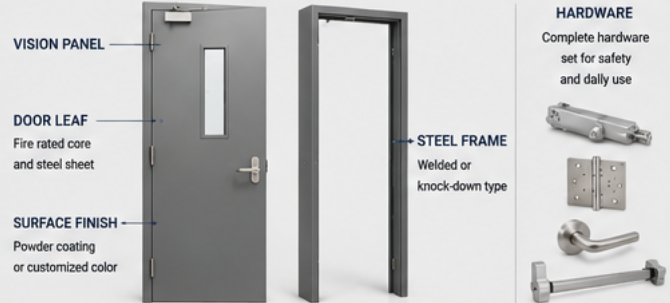

1. Choose The Fire Rated Door As A Complete System

Many buyers focus first on the fire rated door leaf, but the door leaf is only one part of the complete system. A proper fire rated door should include a matched frame, hinges, lock, handle, door closer, sealing system and optional accessories such as a vision panel, panic bar, coordinator or threshold.

If the frame does not match the wall opening, installation may become difficult. If the hardware is not suitable for the door size or weight, the door may not close smoothly. If the vision panel is not correctly selected, it may affect the intended safety function or daily use of the door. For project procurement, all these details should be confirmed before production.

Buyers should provide the fire rating requirement, door size, wall thickness, opening direction, application area and hardware list before requesting a quotation. This allows the manufacturer to recommend a complete fire rated door solution instead of only quoting a basic door leaf.

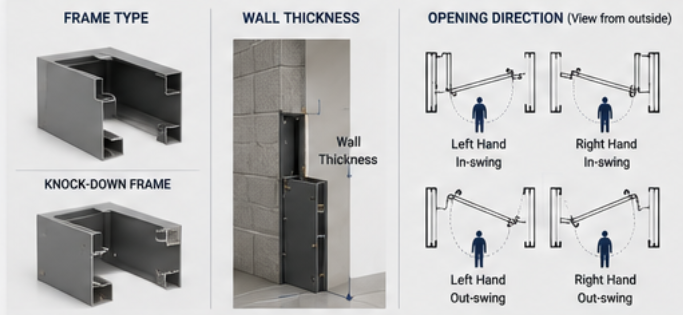

2. Check Frame Type, Wall Thickness And Installation Conditions

The frame is one of the most important parts of a fire rated door system. A steel frame should match the wall thickness, opening size, installation method and door leaf weight. If the frame size or profile is wrong, the door may not align properly, and site installation can become more difficult.

Buyers should confirm whether the project requires a welded frame, knock-down frame or customized frame design. Welded frames are often strong and stable, while knock-down frames may be easier for packing, shipping and site assembly. The right choice depends on the project location, shipping requirement, wall structure and installation team.

Before quotation, provide clear opening width, opening height, wall thickness, installation drawing and door direction. For overseas projects, photos of the wall opening or architectural drawings can help the manufacturer reduce misunderstandings before production.

Key Selection Checklist For Frame, Hardware And Vision Panel

3. Match Hardware With Door Size, Weight And Application Area

Hardware should never be selected only by appearance or lowest price. A fire rated door with poor hardware may not close properly, may create noise during daily use, or may require frequent maintenance after installation. The hardware package should match the door size, door weight, application area and expected usage frequency.

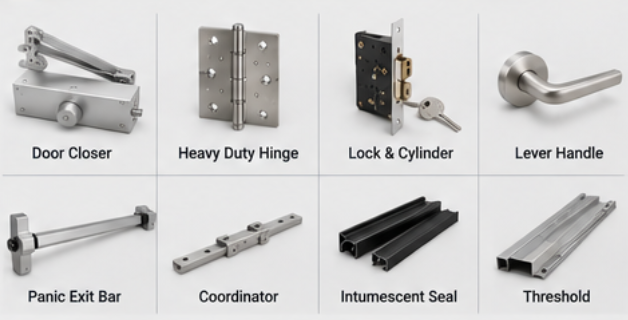

Common fire rated door hardware includes heavy-duty hinges, door closers, locks, lever handles, panic exit bars, coordinators, intumescent seals and thresholds. For stairwells and fire exits, reliable closing performance is especially important. For public buildings and emergency routes, panic hardware may be needed. For double-leaf doors, coordinators should be checked to support correct closing sequence.

Buyers should send the hardware list before production. If the project does not have a confirmed list, the manufacturer can recommend suitable hardware according to the fire rating, door size, opening direction and project application.

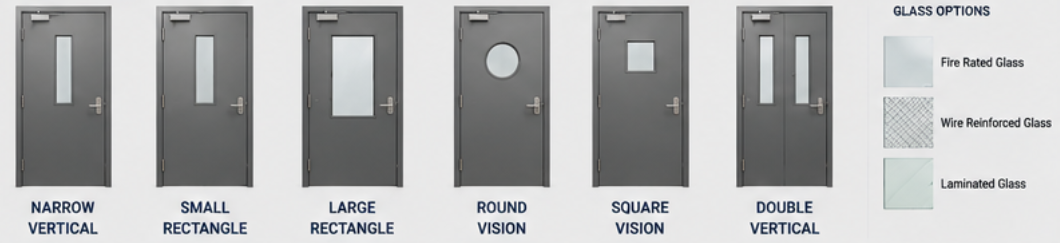

4. Decide Whether A Vision Panel Is Needed

A vision panel is often used when visibility is needed through the fire rated door. It can be helpful in corridors, hospitals, schools, public buildings, service rooms, office areas and access-controlled zones. It allows users to see movement on the other side of the door and can improve daily operation.

Buyers should confirm the size, shape, position and glass requirement of the vision panel before production. A narrow vertical vision panel is commonly used for commercial fire rated steel doors, while larger or customized vision panels may be selected depending on the project design.

The vision panel should also match the door leaf, frame, surface finish and hardware position. If the panel position is not coordinated with the lock, handle, panic bar or closer, it may affect both appearance and practical use. Therefore, drawings or sample confirmation are recommended before mass production.

Conclusion: Frame, Hardware And Vision Panel Should Be Confirmed Together

Choosing a fire rated door with frame, hardware and vision panel requires a complete system approach. Buyers should confirm the fire rating, door size, wall thickness, frame type, hardware package, vision panel design, opening direction, surface finish and packaging before production. These details directly affect installation accuracy, daily operation, appearance and long-term maintenance.

If you are preparing a commercial building, hotel, apartment, hospital, school, factory, warehouse or public facility project, send us your drawings, door schedule, size list, fire rating, frame requirement, hardware list and vision panel design. JIAHUI can help review the details and provide a suitable fire rated door system solution.
